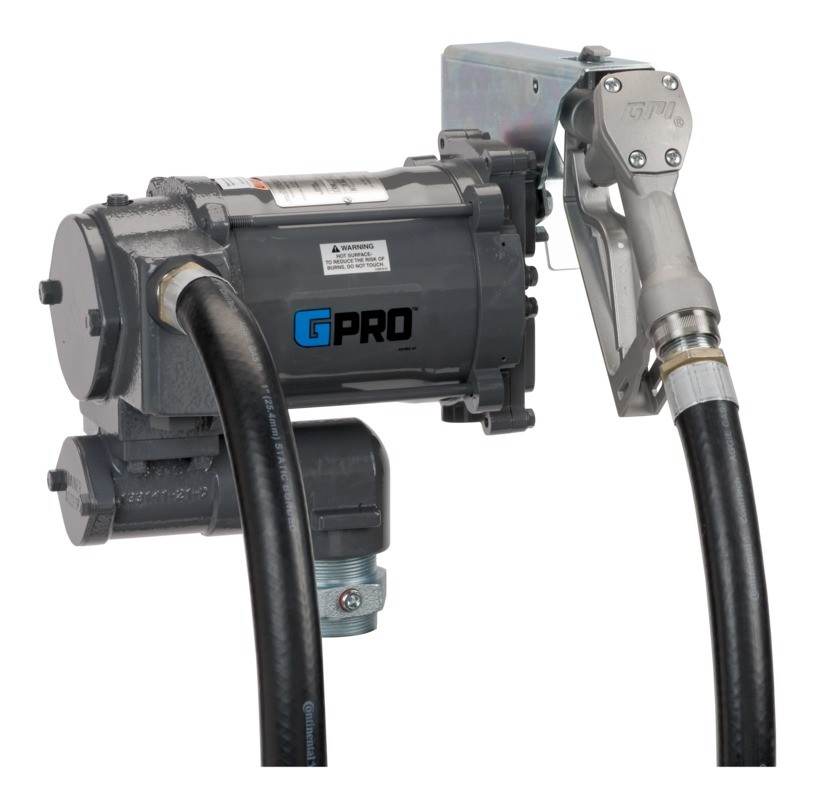

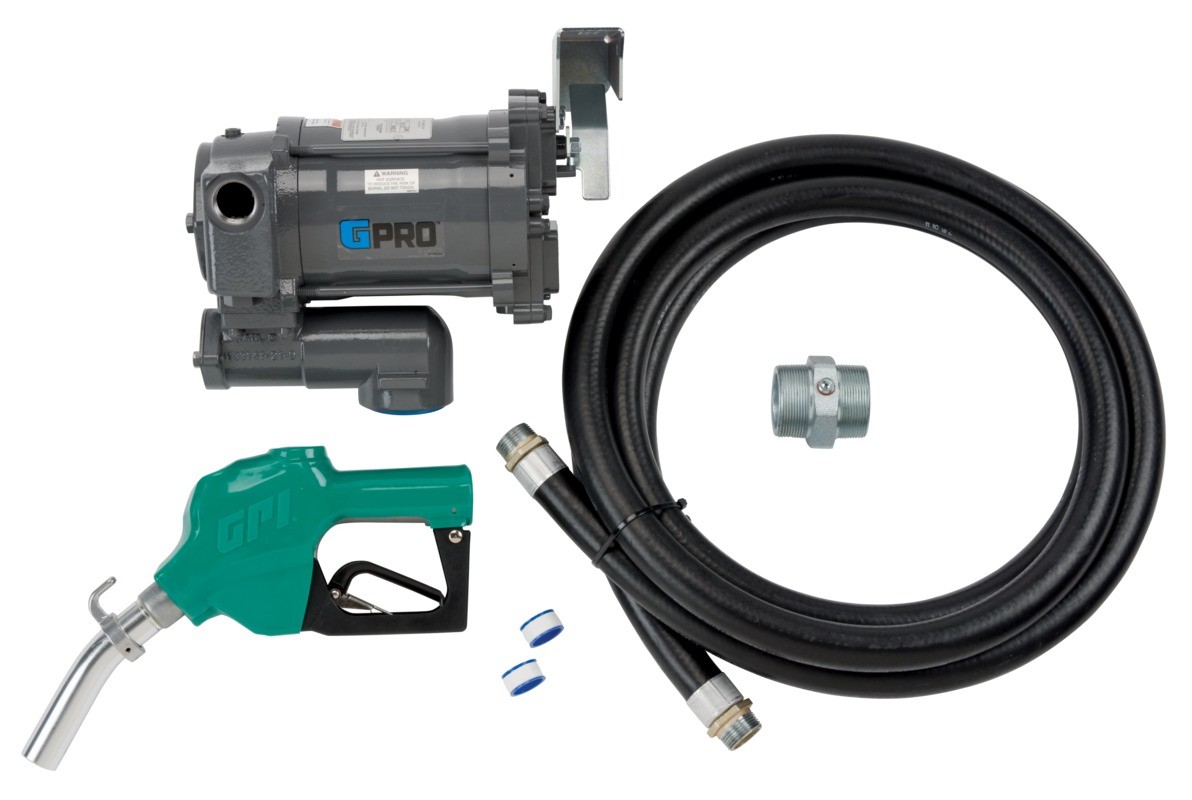

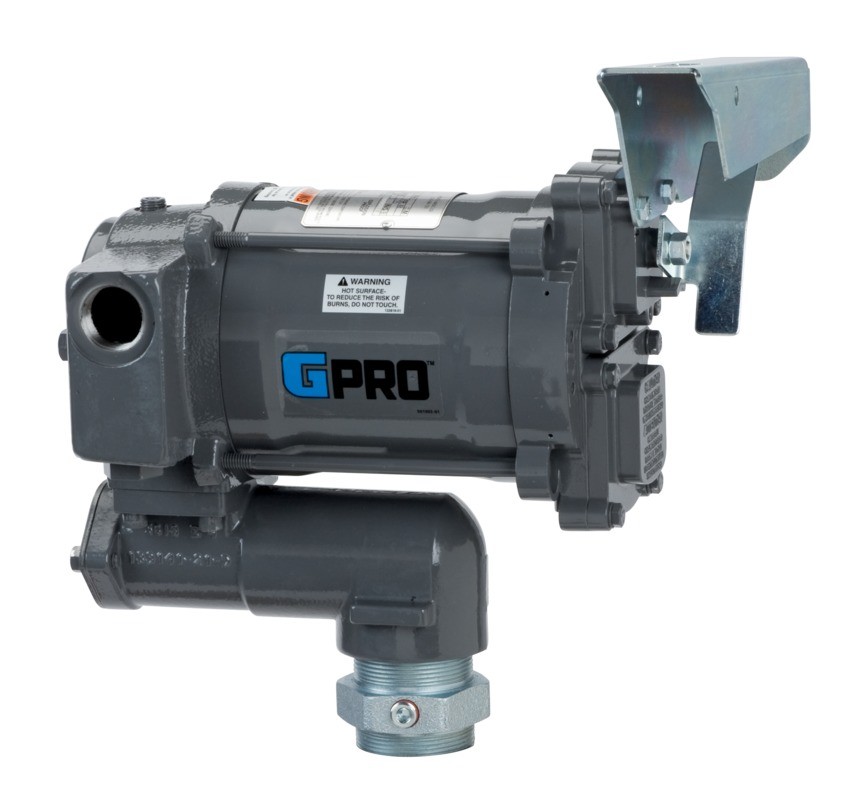

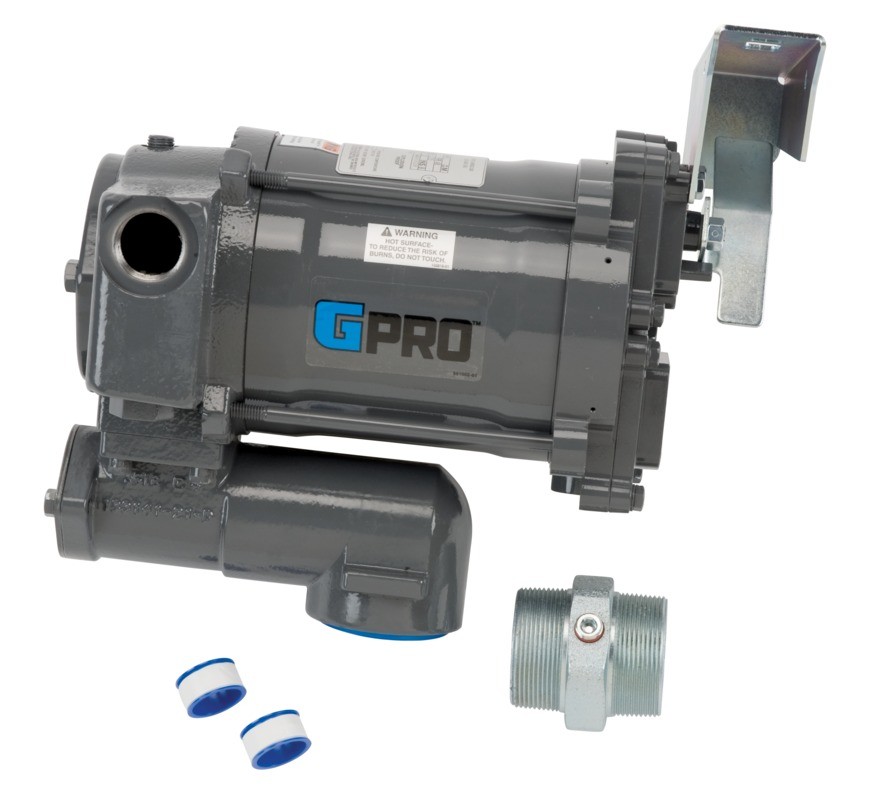

PUMP-GPI PRO 20GPM 115 VOLT
Impressive 20 GPM flowrate for stationary tank applications. Ideal for fleet, agriculture or industrial applications.
Product Features:
- Extended Duty Cycle exceeds the industry standard Weight centering inlet base includes pressure relief and easy strainer access Field replaceable switch and vanes
- Tank Adapter included
- Thermally protected motor
- Vacuum Breaker Ready
- Extreme Temperature Series (XTS) pump-only model available
SKU Details
| Sku Images | Part# | Operating Pressure | Input | Type | Current Draw | Motor | Flow Rate | Duty Cycle | Operating Temperature | Pump Housing | Inlet/Outlet | Mounting | Dispensing Hose | Warranty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E503000-05 | 22 psi (1.52 bar) - High Pressure | 115 VAC, 60 Hz | Carbon Vane | 4.9 amp | 1725 RPM, 1/3 HP, UL Listed to US and Canadian Standards | 20 GPM (76 L/min) | 30 min. ON, 30 min. OFF | -20°F to 125°F (-29°C to 52°C) | Powder Coated Cast Iron | 1 in. NPT | 2 in. NPT | 18 ft. (5.5 m) x 1 in. | 4 Year Pump |
